SDX Onboard/Internal Camera Configuration

1. Setup Shared Directory on Customer's Server
Example Location: C:\Dragon\Mobile
This directory will be used to store the image for the internal camera

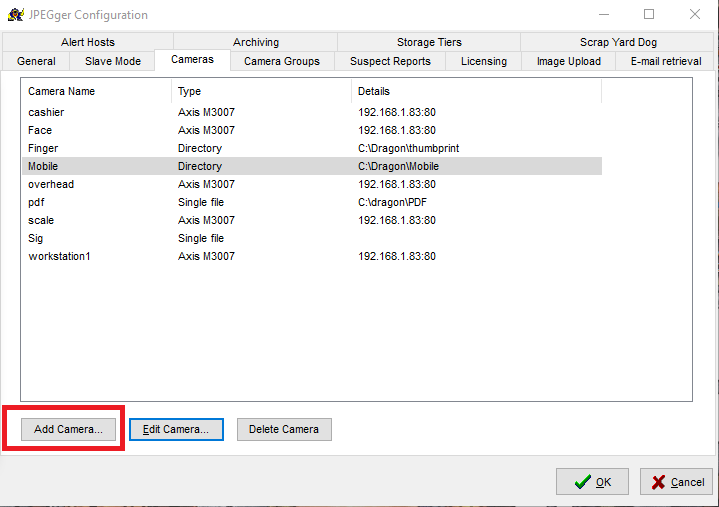

2. Add a camera in JPEGger Config

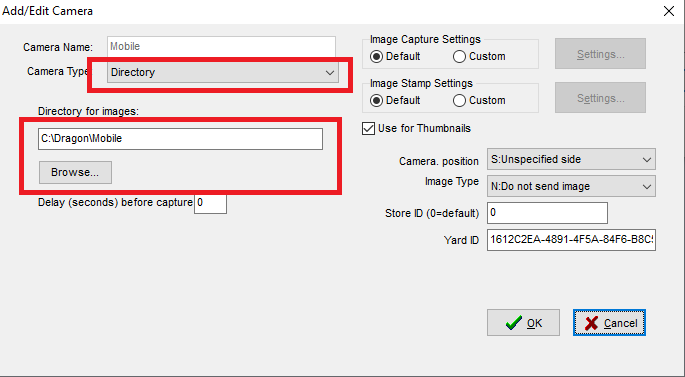

3. Select Camera Type as Directory.  Add a Directory for the images to be stored locally.

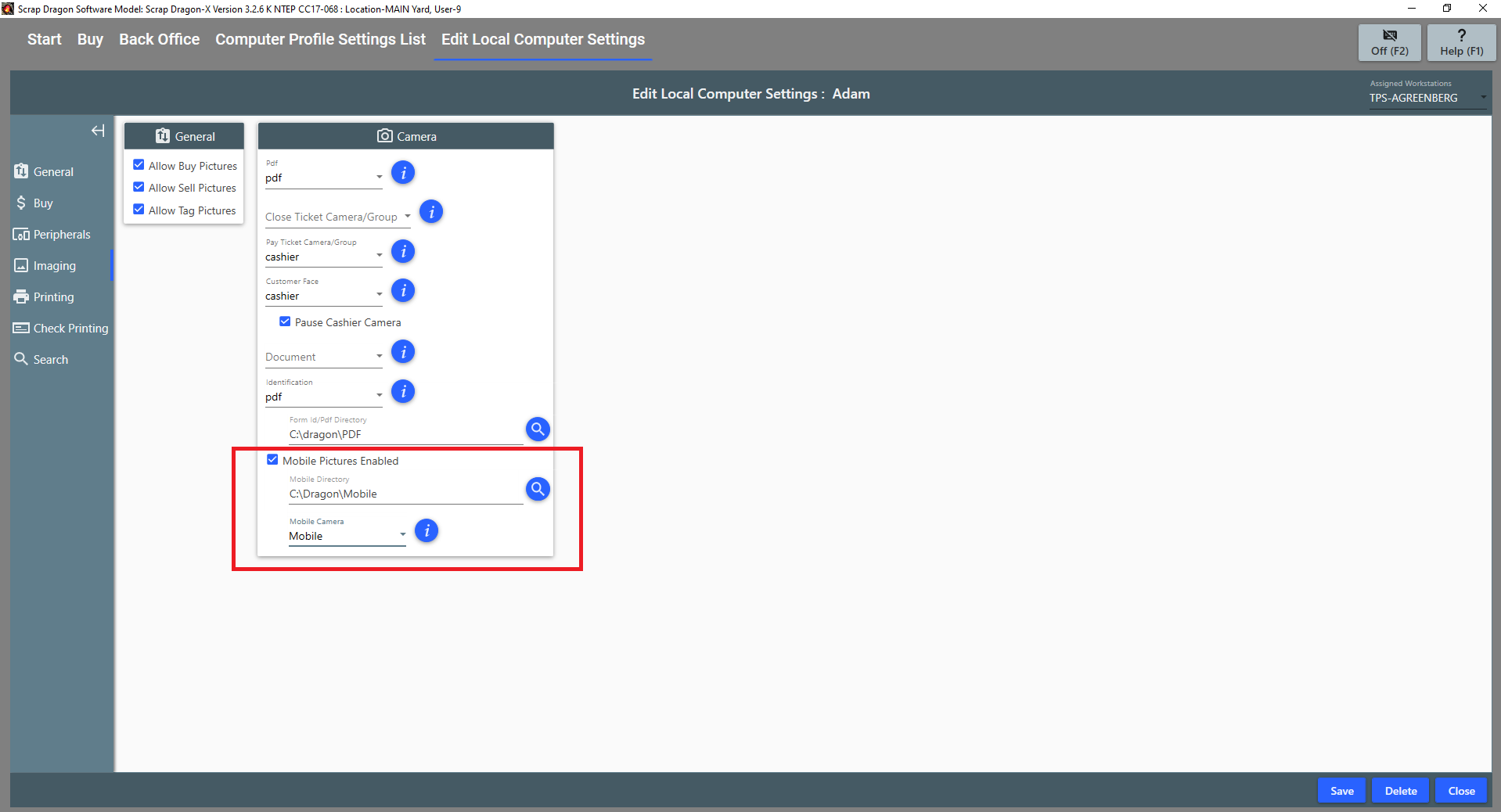

4. Local Computer Settings - Imaging Tab - Check Box "Mobile Pictures Enabled" - Add Directory Path - Select Camera Name

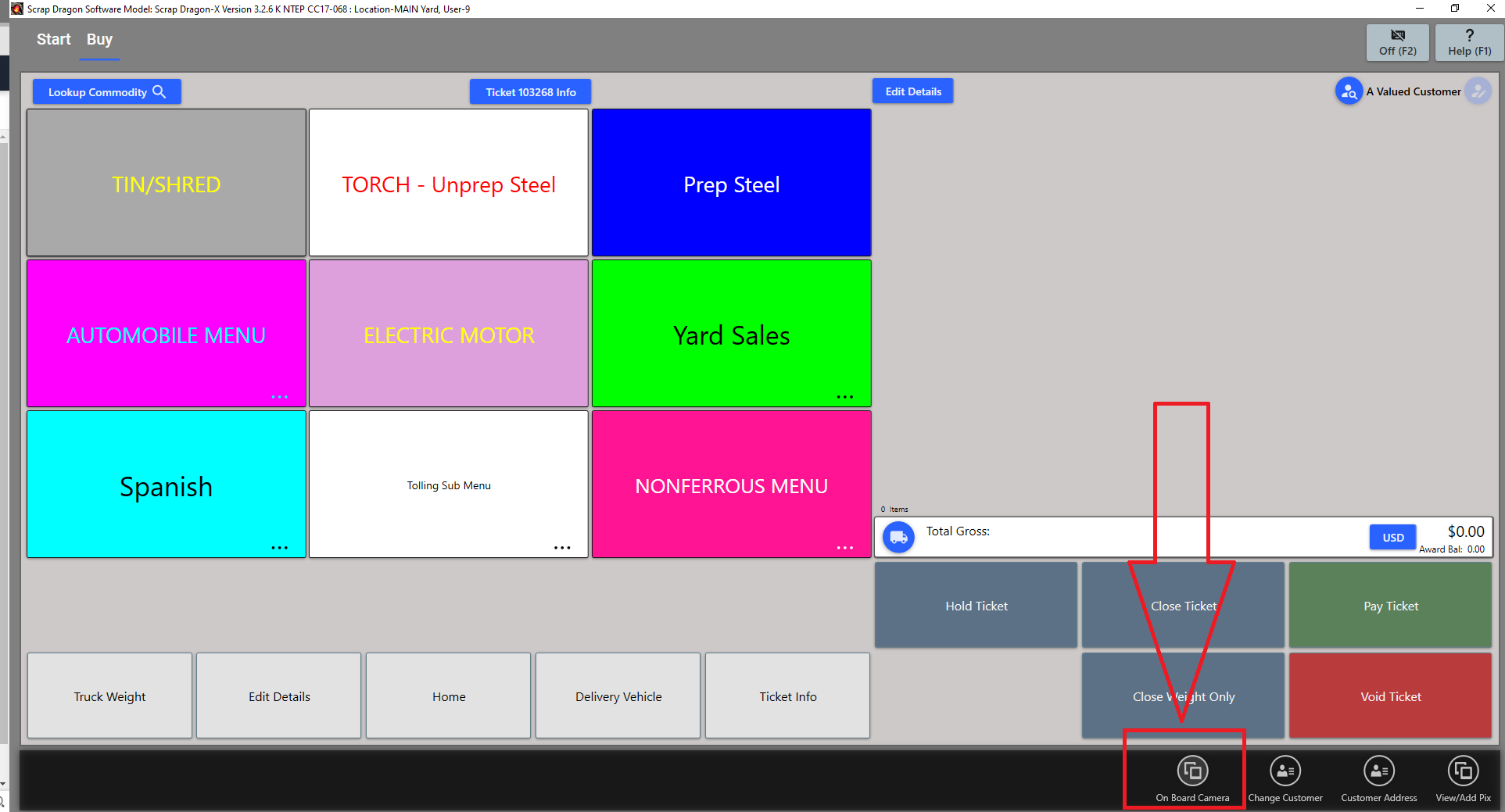

5. Select "Onboard Camera" and Add Photos to Tickets

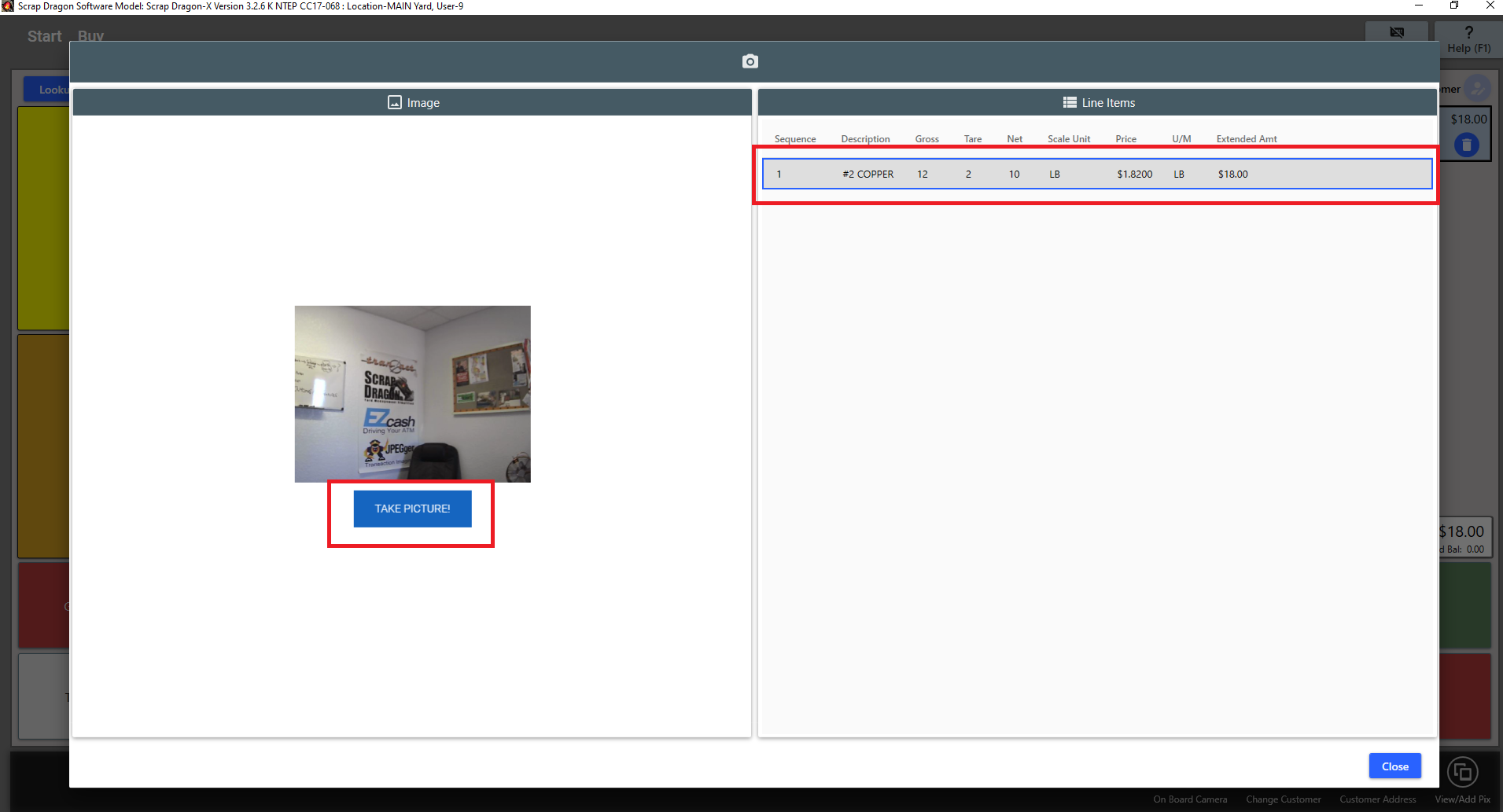

6. Select Line Item - Take Picture! - Select Event Code
